Securing AI Agents: The Future of MCP Authentication & Authorization

# AI Agents

# MCP

# AI Security

# Machine Learning

How OAuth 2.1 and token exchange are solving the enterprise AI security challenge

September 2, 2025

Subham Kundu

As AI agents like Claude, Cursor, and other intelligent assistants become integral to enterprise workflows, a critical security challenge has emerged: How do we safely allow AI agents to access sensitive enterprise resources on behalf of users?

The Model Context Protocol (MCP) has emerged as a promising standard for AI agent-to-service communication, but with great power comes great security responsibility. Industry experts in OAuth and enterprise security have identified sophisticated authentication and authorization patterns needed to make enterprise AI both powerful and secure.

The Problem: From Local Development to Enterprise Reality

The Naive Approach (Where Most Start)

Many MCP implementations begin with a simple model:

AI client runs locally on user's machine

MCP server also runs locally

Authentication? What authentication?

Downstream API access via hardcoded admin keys or personal access tokens (PATs)

User → AI Client → MCP Server → [Admin API Key] → Downstream Services

This works fine for local development but becomes a security nightmare at enterprise scale. Imagine every employee's AI requests to Dropbox being made with the same admin-level API key!

The Enterprise Reality Check

Real enterprise deployment requires:

Authentication of AI clients to MCP servers

Authorization that respects user permissions and enterprise policies

User-scoped access to downstream services (not admin-level everything)

Audit trails showing who accessed what, when

Standards compliance for security teams

The Solution: OAuth 2.1 + Token Exchange Architecture

The solution leverages battle-tested OAuth patterns with some modern twists designed specifically for AI agent scenarios.

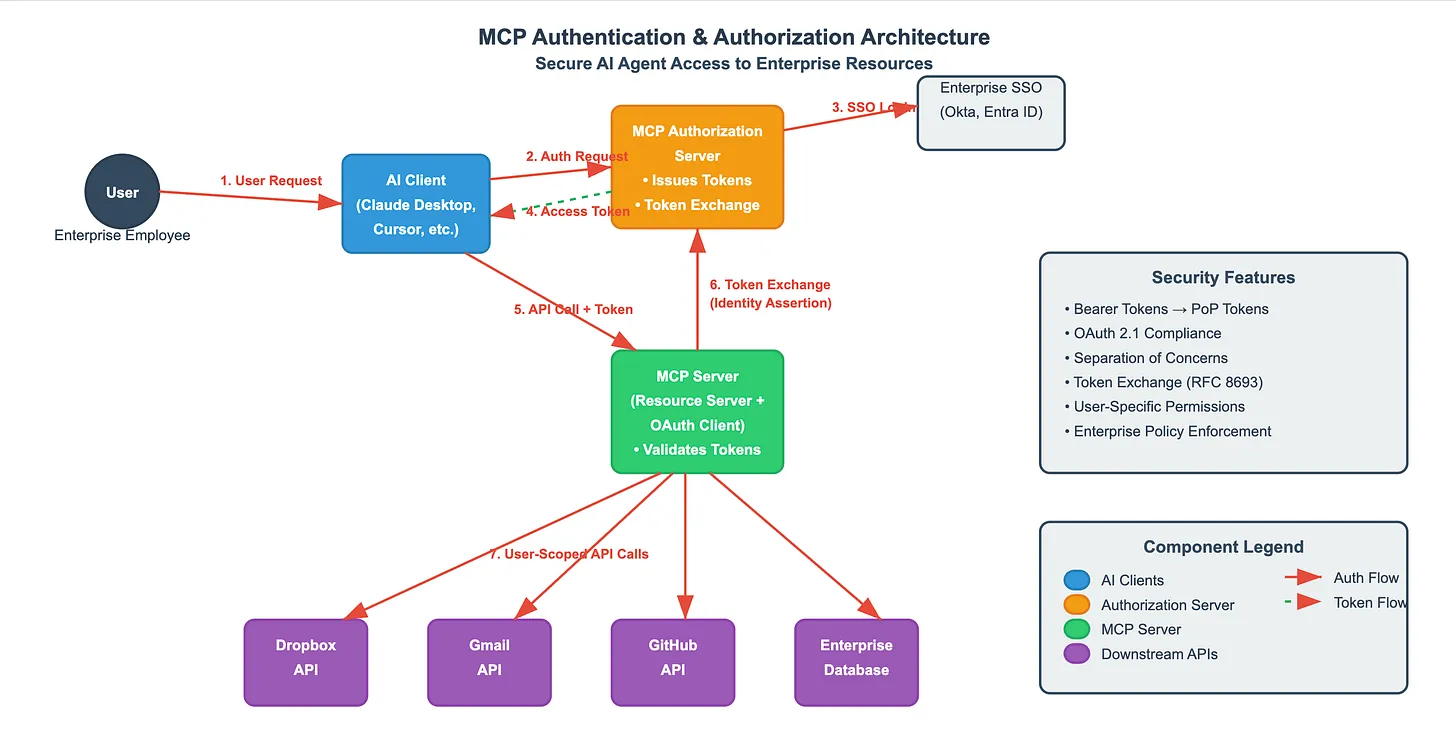

The Three-Layer Architecture

Layer 1: User to AI Client The user interacts with their AI agent (Claude Desktop, Cursor, etc.) as normal. The magic happens behind the scenes.

Layer 2: AI Client to MCP Server ("The First Hop")

AI client redirects user to MCP Authorization Server

User authenticates via enterprise SSO (Okta, Entra ID, etc.)

Authorization server issues access token for MCP server

AI client presents token when calling MCP server

Layer 3: MCP Server to Downstream Services ("The Second Hop")

MCP server receives user's request + valid token

For downstream API calls (Dropbox, Gmail, etc.), MCP server uses Identity Assertion Grant

User's identity token is exchanged for service-specific access tokens

Each downstream call uses appropriate user-scoped permissions

The Token Exchange Magic

The Identity Assertion Grant (RFC 8693) is the secret sauce that makes this architecture elegant:

MCP Server → Authorization Server:
"I have this user's ID token. Please give me a Dropbox token for this specific user."

Authorization Server → MCP Server:
"Here's a user-scoped Dropbox token valid for 1 hour."

This pattern means:

Users authenticate once to their enterprise system

AI clients only need one MCP server token

MCP servers get fresh, scoped tokens for each downstream service

No stored credentials or overly broad permissions

Security Enhancements: Beyond Basic OAuth

From Bearer Tokens to Proof of Possession

Traditional bearer tokens are like hotel key cards - whoever has them can use them. The industry is moving toward Proof of Possession (PoP) tokens that are cryptographically bound to the requesting client.

Bearer Token Risk:

Stolen Token → Immediate unauthorized access

PoP Token Security:

Stolen Token → Useless without cryptographic proof of legitimate client

Separation of Concerns

The architecture cleanly separates responsibilities:

Authorization Server: Issues and manages tokens

MCP Server: Validates tokens and orchestrates downstream access

AI Client: Presents tokens and handles user interaction

Downstream Services: Enforce their own resource protection

Enterprise Benefits: Security Meets User Experience

For Security Teams

Centralized policy enforcement through enterprise SSO

Audit trails showing exactly which AI agents accessed what data

Token lifecycle management with automatic expiration and refresh

Standards compliance with OAuth 2.1 best practices

For End Users

Single sign-on experience - authenticate once, access everything

No credential sharing with individual services

Consistent permissions - AI agents respect the same access controls as direct user access

For Developers

Standard patterns instead of custom auth per integration

Off-the-shelf components rather than building security from scratch

Clear separation between authentication logic and business logic

Implementation Considerations

Current State vs. Future State

MCP Spec Today: Focuses on the "first hop" (client to MCP server authentication)

MCP Spec Tomorrow: Will include standards for the "second hop" (MCP server to downstream services)

Technology Stack Recommendations

OAuth 2.1 as the foundation standard

Identity Assertion Grant for token exchange

Enterprise SSO integration (Okta, Entra ID, etc.)

Proof of Possession tokens for enhanced security

Short-lived tokens with automatic refresh

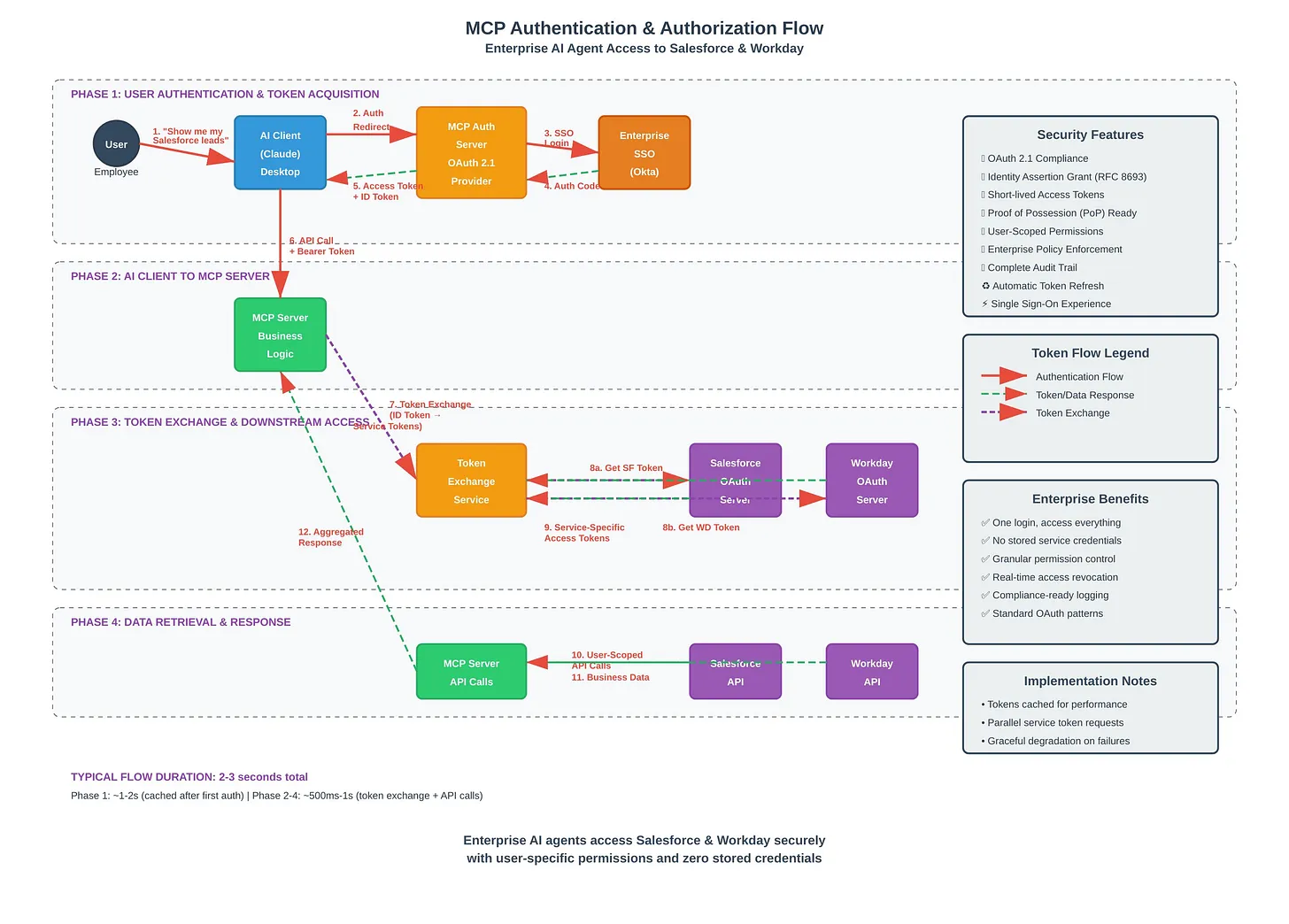

Step-by-Step Implementation: Salesforce & Workday Integration

Let's walk through a practical example of implementing MCP authorization for an enterprise that wants to connect their AI agents to both Salesforce and Workday through a secure MCP server.

Prerequisites

Enterprise OAuth provider (Okta, Entra ID, etc.)

MCP Authorization Server

MCP Server with Salesforce and Workday connectors

AI Client (Claude Desktop, custom enterprise AI app)

User accounts in enterprise SSO, Salesforce, and Workday

Step 1: Configure the MCP Authorization Server

# MCP Authorization Server Configuration
authorization_server:
  issuer: "https://mcp-auth.company.com"

  # Enterprise SSO Integration
  identity_providers:
    - name: "company-sso"
      type: "okta" # or "entra_id"
      client_id: "${COMPANY_SSO_CLIENT_ID}"
      client_secret: "${COMPANY_SSO_CLIENT_SECRET}"
      discovery_url: "https://company.okta.com/.well-known/openid_configuration"

  # Downstream service configurations
  token_exchange:
    salesforce:
      authorization_server: "https://login.salesforce.com"
      client_id: "${SALESFORCE_CLIENT_ID}"
      client_secret: "${SALESFORCE_CLIENT_SECRET}"
      scope: "api refresh_token"

    workday:
      authorization_server: "https://impl-services1.workday.com/oauth2/company/token"
      client_id: "${WORKDAY_CLIENT_ID}"
      client_secret: "${WORKDAY_CLIENT_SECRET}"
      scope: "Staffing"

Step 2: Register the AI Client

POST /oauth2/clients
Content-Type: application/json
Authorization: Bearer ${ADMIN_TOKEN}

{
  "client_name": "Enterprise AI Assistant",
  "client_type": "public",
  "redirect_uris": [
    "https://ai-client.company.com/callback"
  ],
  "grant_types": ["authorization_code", "refresh_token"],
  "scope": "mcp:server:access profile"
}

Step 3: Configure the MCP Server

// MCP Server Configuration
const mcpServer = new MCPServer({
  authorization: {
    server_url: "https://mcp-auth.company.com",
    audience: "mcp-server",
    required_scopes: ["mcp:server:access"]
  },

  tools: [
    {
      name: "salesforce-connector",
      description: "Access Salesforce CRM data",
      required_token_exchange: "salesforce"
    },
    {
      name: "workday-connector",
      description: "Access Workday HR data",
      required_token_exchange: "workday"
    }
  ]
});

Step 4: Implement the Authentication Flow

Phase 1: User Authentication

// AI Client initiates authentication
const authUrl = `https://mcp-auth.company.com/oauth2/authorize?` +
  `client_id=${CLIENT_ID}&` +
  `redirect_uri=${REDIRECT_URI}&` +
  `response_type=code&` +
  `scope=mcp:server:access profile&` +
  `state=${CSRF_TOKEN}`;

// Redirect user to authorization server
window.location.href = authUrl;

Phase 2: Token Exchange

// After user authenticates, exchange code for tokens
const tokenResponse = await fetch('https://mcp-auth.company.com/oauth2/token', {
  method: 'POST',
  headers: { 'Content-Type': 'application/x-www-form-urlencoded' },
  body: new URLSearchParams({
    grant_type: 'authorization_code',
    code: authorizationCode,
    client_id: CLIENT_ID,
    redirect_uri: REDIRECT_URI
  })
});

const { access_token, id_token, refresh_token } = await tokenResponse.json();

Step 5: AI Client to MCP Server Communication

// AI Client calls MCP Server with user's access token
const mcpResponse = await fetch('https://mcp-server.company.com/tools/execute', {
  method: 'POST',
  headers: {
    'Authorization': `Bearer ${access_token}`,
    'Content-Type': 'application/json'
  },
  body: JSON.stringify({
    tool: "salesforce-connector",
    action: "get_opportunities",
    parameters: {
      status: "open",
      owner: "current_user"
    }
  })
});

Step 6: MCP Server Token Exchange for Downstream Access

// MCP Server exchanges user's identity for Salesforce-specific token
async function getSalesforceToken(userIdToken) {
  const tokenExchangeResponse = await fetch('https://mcp-auth.company.com/oauth2/token', {
    method: 'POST',
    headers: { 'Content-Type': 'application/x-www-form-urlencoded' },
    body: new URLSearchParams({
      grant_type: 'urn:ietf:params:oauth:grant-type:token-exchange',
      subject_token: userIdToken,
      subject_token_type: 'urn:ietf:params:oauth:token-type:id_token',
      audience: 'https://login.salesforce.com',
      requested_token_type: 'urn:ietf:params:oauth:token-type:access_token'
    })
  });

  const { access_token } = await tokenExchangeResponse.json();
  return access_token;
}

// Use the exchanged token for Salesforce API calls
const salesforceResponse = await fetch('https://company.salesforce.com/services/data/v58.0/sobjects/Opportunity', {
  headers: {
    'Authorization': `Bearer ${salesforceAccessToken}`,
    'Content-Type': 'application/json'
  }
});

Step 7: Workday Integration (Similar Pattern)

// Token exchange for Workday access
async function getWorkdayToken(userIdToken) {
  const tokenExchangeResponse = await fetch('https://mcp-auth.company.com/oauth2/token', {
    method: 'POST',
    headers: { 'Content-Type': 'application/x-www-form-urlencoded' },
    body: new URLSearchParams({
      grant_type: 'urn:ietf:params:oauth:grant-type:token-exchange',
      subject_token: userIdToken,
      subject_token_type: 'urn:ietf:params:oauth:token-type:id_token',
      audience: 'https://impl-services1.workday.com',
      requested_token_type: 'urn:ietf:params:oauth:token-type:access_token'
    })
  });

  return tokenExchangeResponse.json();
}

// Query Workday for employee data
const workdayResponse = await fetch('https://impl-services1.workday.com/ccx/service/company/Human_Resources/v42.1', {
  method: 'POST',
  headers: {
    'Authorization': `Bearer ${workdayAccessToken}`,
    'Content-Type': 'application/soap+xml'
  },
  body: workdaySOAPRequest
});

Step 8: Error Handling and Token Refresh

// Implement robust error handling
class MCPAuthManager {
  async callWithTokenRefresh(apiCall) {
    try {
      return await apiCall();
    } catch (error) {
      if (error.status === 401) {
        // Token expired, refresh and retry
        await this.refreshTokens();
        return await apiCall();
      }
      throw error;
    }
  }

  async refreshTokens() {
    const response = await fetch('https://mcp-auth.company.com/oauth2/token', {
      method: 'POST',
      headers: { 'Content-Type': 'application/x-www-form-urlencoded' },
      body: new URLSearchParams({
        grant_type: 'refresh_token',
        refresh_token: this.refreshToken,
        client_id: CLIENT_ID
      })
    });

    const tokens = await response.json();
    this.updateStoredTokens(tokens);
  }
}

Security Considerations for Implementation

Token Storage: Never store tokens in localStorage - use secure, HTTP-only cookies or encrypted storage

CSRF Protection: Always use state parameters in OAuth flows

Token Expiration: Implement automatic token refresh before expiration

Audit Logging: Log all token exchanges and API calls for compliance

Scope Limitation: Request minimum necessary scopes for each service

Error Handling: Implement graceful degradation when services are unavailable

This implementation provides a complete, production-ready approach to MCP authorization that enables secure AI agent access to enterprise systems while maintaining user privacy and administrative control.

As AI agents become more sophisticated and access increasingly sensitive data, authentication and authorization cannot be an afterthought. The patterns discussed here represent the leading edge of enterprise AI security thinking.

Key trends to watch:

Standardization of MCP auth patterns across the industry

Enhanced token security with widespread PoP adoption

Fine-grained permissions for AI agent actions

Cross-organization federation for multi-tenant AI services

Key Takeaways

OAuth 2.1 is the way forward - Don't reinvent authentication and authorization

Token exchange enables seamless UX - Users authenticate once, access everything securely

Separation of concerns is critical - Authorization servers, resource servers, and clients have distinct roles

Proof of Possession tokens are becoming essential for high-security environments

Enterprise adoption requires audit trails, policy enforcement, and standards compliance

The future of enterprise AI depends on getting security right from the start. The authentication and authorization patterns emerging around MCP provide a roadmap for building AI systems that are both powerful and secure.

If you want to connect with me, please feel free to drop a Hi at Substack or email me at [email protected].

Originally posted @ https://cenrax.substack.com/p/securing-ai-agents-the-future-of

Securing AI Agents: The Future of MCP Authentication & Authorization

How OAuth 2.1 and token exchange are solving the enterprise AI security challenge

Popular

Related
